A combustion engine must operate in a certain
temperature window in order to function optimally.
To prevent the engine from overheating and causing
serious damage to the mechanics, the heat generated by
the engine cooling system during engine operation must
be effectively dissipated to the environment.
Various components of the engine cooling ensure that
the temperature is always at an ideal level. To ensure
that they work flawlessly at all times, they are intensively
tested by febi bilstein.
Certified quality management tests the offered wear
parts for the engine cooling to various requirements and
loads such as accuracy, dimensional accuracy and
material quality.

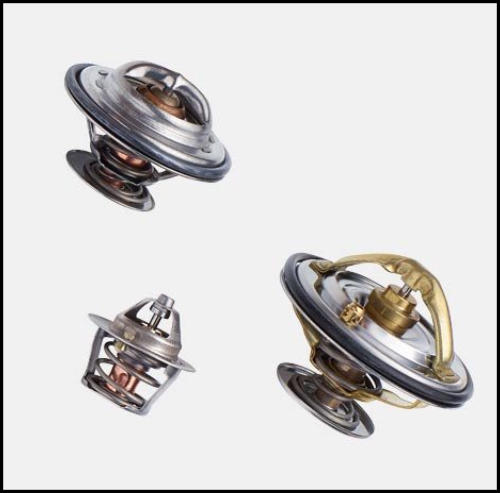

The engine temperature is controlled by means of
cooling liquid and a thermostat.
The latter ensures that the engine
reaches its ideal operating
temperature as quickly as
possible and then continues to
maintain it. A faulty or blocked
thermostat can lead to engine
overheating. This can result in
considerable engine damage.
For this reason, febi bilstein only
offers thermostats in tested OE
matching quality. The product
range includes thermostats for all
common vehicle types in various
temperature ranges, with or
without a venting valve. Of
course, the thermostats are
supplied with the required gasket.

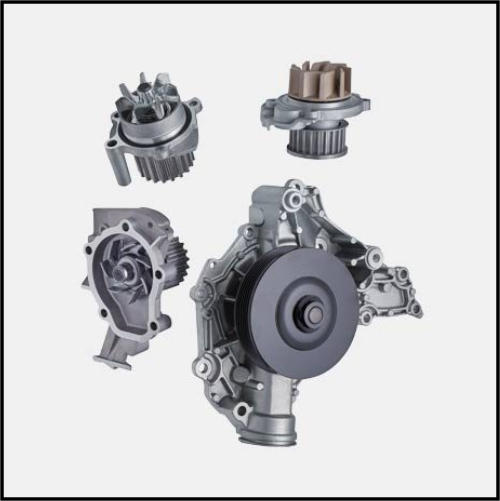

The task of the water pump is to circulate the cooling
liquid and to ensure the circulation required for the heat
exchange in the engine. In order to be reliable over a
long period of time, wear parts must be robust and
durable.
A typical wear part is the mechanical seal that seals the
water pump shaft. It is a quality feature on a water pump.
This mechanical seal is of complex design and is made
of certain materials, for example ceramic. If it leaks, the
vehicle leaks coolant, which can lead to engine damage
due to overheating. For water pumps from febi bilstein
only the highest quality mechanical seals are used.
Check of surrounding components.
When replacing the water pump, the surrounding
components should also be tested for wear.
This applies in particular to the timing belt, which drives
the water pump and becomes susceptible to deformation
and hardening with increasing service life.
febi bilstein offers complete timing belt sets, which
includes all the required individual parts (including belt
tensioners, deflection and tensioning rollers), which are
necessary for a professional timing belt change.

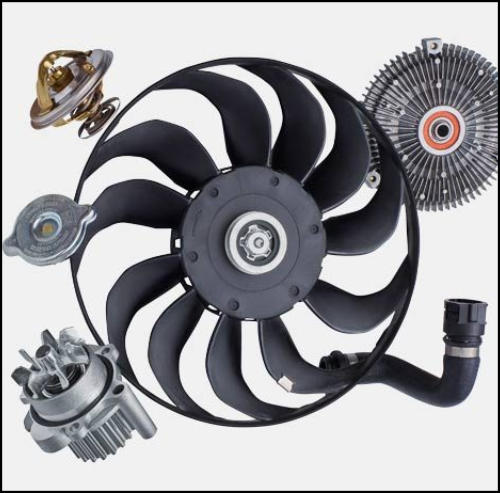

Electronically controlled radiator fans are present in
almost all vehicles. They play an important role in
controlling cooling airflow as required.
They generally consist of an electric motor, which is
controlled by the engine control unit as required.

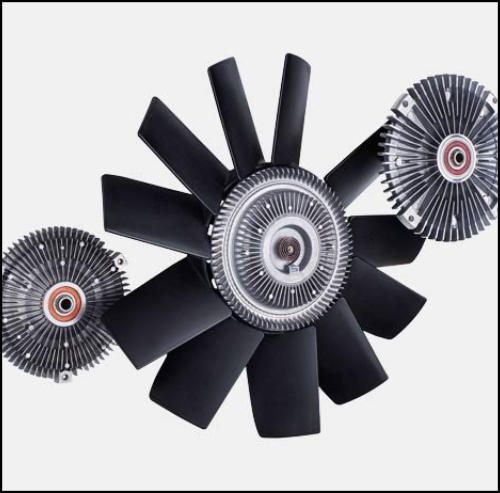

Furthermore, there are fan couplings, which can be found
in older vehicles.
They consist of two discs, between which there is liquid
(silicone oil). One disc is driven by the engine; the other
is connected to the fan blades. If cooling is required, a
bimetallic spring ensures that the liquid between the
discs is transferred by adhesion to the other disc.
The more modern version is an electronically controlled
fan coupling. It is similar in construction, but the rough
regulation of the bimetallic spring is replaced by the fine
regulation of a motor control unit. As a result, precise fuel
control saves fuel and relieves the environment.
